The "Dimensions by line" plugin will allow you to quickly create a linear dimension chain by creating a phantom line by specifying 2 points. All walls and axes that will be orthogonal to this line and intersect it will be processed and the dimension chain will be built on them. But first the plugin must be set up, go to plugin settings

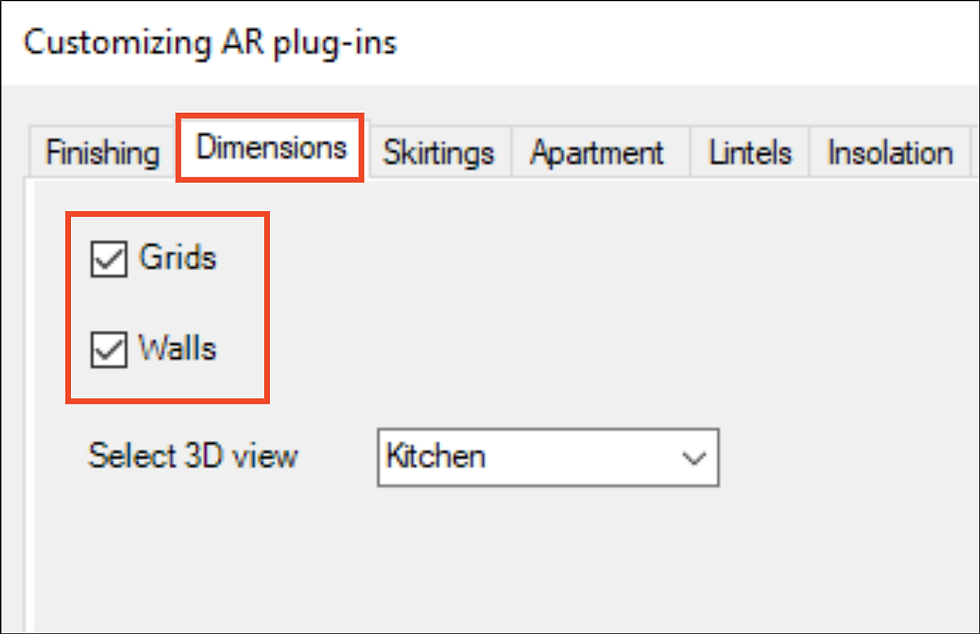

And in the "Dimensions" tab, check the "Grids" and "Walls" categories, thereby setting the plugin's working format. If, for example, you want the plugin to work only on axes, check only one checkbox.
The plugin is ready for customization. Run the plugin on the ribbon, and then specify 2 points on the plan, marking with them a phantom line for the pluginа.
